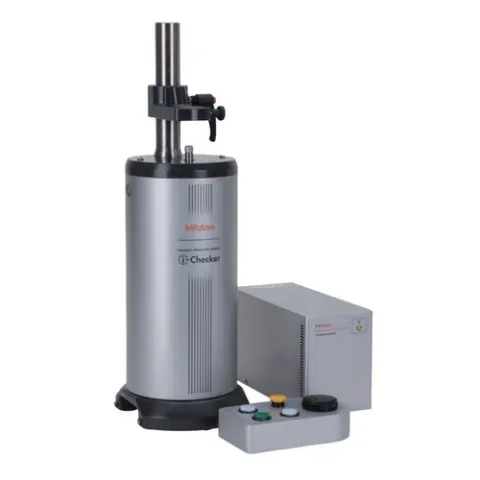

Mitutoyo 64PKA148A IC2000 i-Checker Inspection Instrument for Indicators

The i-Checker is specially designed to calibrate dial indicators, dial test indicators, and other electronic comparison gage heads with a stroke of up to 100mm (4").

Features:

• ±(0.1+0.4L/100) μm indication accuracy.
• Directly inspects an indicator with a stroke of up to 100mm (4"). The dial test indicator, bore gage and lever-type inductive head can be inspected with optional accessories.
• Using test indicator attachment set (02ASK000)
• Adjustment of the measurement position is easily accomplished due to semi-automatic measurement and fully automatic measurement functions.
• Creates and prints out a simple inspection certificate.
• Saves inspection results as a CSV file for analysis by software.
• Inspection can be performed 2.5 times faster compared to the previous model.
• This instrument guarantees ultra-reliable inspection results.
• Digital indicators equipped with a data output function are efficiently checked due to spindle positioning at the inspection points and records fully automatic measurement results.
• Analog indicators are inspected in semi-automatic mode with the pointer of the indicator manually adjusted at each measuring point with automatic transfer of inspection results and movement to the next measuring point.
• The latest standard for dial test indicators, ASME and DIN, are applied.
• Operators can customize inspection standards and inspection certifications.

For more information, please see Data Sheet
