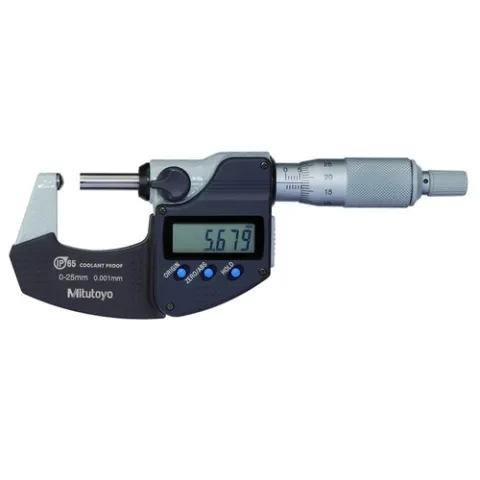

Mitutoyo 395-251-30 Series 395 Digital Tube Micrometer, Spherical Anvil, 0-25 mm, IP65

The Mitutoyo digimatic digital spherical micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Features:

• Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
• Spherical measuring faces are 0.59" in diameter and carbide-tipped for durability
• IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
• Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
• SPC output function allows for quick and easy data management in real time
• Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock
• Alarm: Low Voltage, Counting Value Composition Error
• Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
• Frame has a non-slip finish for better grip in shop environments
• Supplied in fitted plastic case
