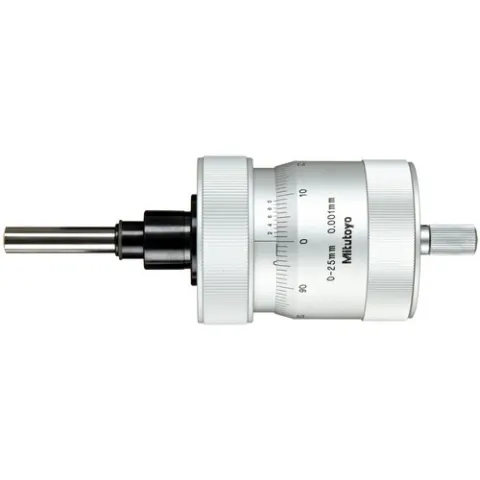

Mitutoyo 152-401 Micrometer Head XY-Stage, Thimble 49 mm, 0-25 mm, Y-Axis, with Vernier

The Mitutoyo XY-stage micrometer heads are designed to make stage movements and adjustments easier and more precise. The micrometer heads have bi-directional graduations for easier measurement readings in both directions, and a floating thimble allows zero setting at any spindle position simple and accurate.

Features:

• Mic head has a 49 mm / 1.93" thimble diameter
• Spindle range is 25 mm / 1"
• Spindle diameter is 6.35 mm / .25"
• Mic head total length (at stroke end) is 7 mm / 5.66"
• Spindle face is flat with a lapped surface and spherical carbide tips
• Scale surface uses white anodized aluminum that resists corrosion
