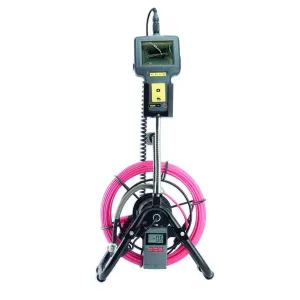

General Tools DPS16-R30 Pipe & Duct Recording Video Inspection Camera/Borescope with 100Fft. Probe & Field Replaceable Camera Head

The #DPS16-R30 Pipe & Duct Recording Video Inspection Camera/Borescope with 100Ft. Probe is ideal for examining the interior of 2, 4 and 6 inch I.D. water and sewer pipes with the help of included probe centering accessories. The IP68-rated probe is 100ft. (30m) long, with a field replaceable 28mm (1.1 in.) diameter camera head.

Features:

• Combines an #H16 recording console with a 100 Ft. Pipe & Duct Inspection Probe & Reel Set
• Eight super-bright white LEDs illuminating the probe camera produce 640 x 480 pixel (VGA) resolution video clips and photos
• The probe is watertight to the IP67 standard and is flexible enough to make two 90° bends in a 1.6 in. (40mm) I.D. pipe
• The stainless steel camera head is immune to bathroom toilet cleaner, unleaded gasoline, brake/transmission fluid and machine oil
• The steel probe reel is sturdy and dust-tight to the IP65 standard. The reel works vertically or horizontally, and it includes an IP55-rated probe length counter, as well as a bracket for the H16 console

Includes:

• #H16 Recording Console
• 100 Ft. Pipe & Duct Inspection Probe & Reel Set (with probe length counter)
• A probe centering ring with an inner diameter of 1.1 in. (28mm) and an outer diameter (O.D.) of 2 in. (50mm)
• A small probe centering brush with an I.D. of 1.1 in. (28mm) and an O.D. of 4 in. (100mm)
• 4GB SD memory card
• RCA cable for viewing video and images on an NTSC monitor
• #AC2 AC Adaptor/Charger
• Custom hard carrying case
