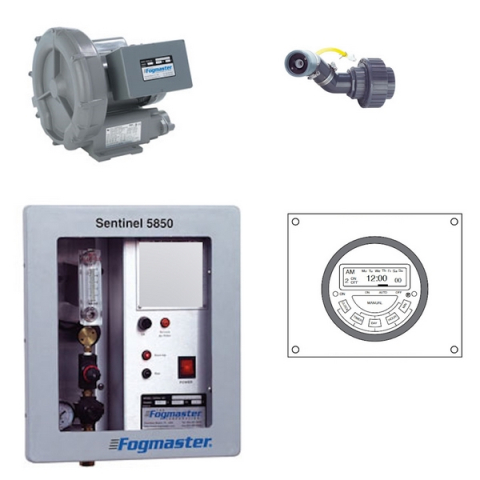

Fogmaster 585010T Sentinel 5850 Modular Fogging System 120VAC w/ Day/Week Timer

The Sentinel 5850 with Day/Week Timer modular fogging system atomizes water to humidify winery barrel rooms, wood working shops, nursery grow houses, concrete curing areas and the like.

Droplet size is adjustable from less than 5 microns - a fine dry fog that evaporates quickly - to more than 50 microns, a heavy wet fog.

Small droplets are preferred for quick evaporation without wetting; larger droplets are better for dust settling, asbestos remediation and evaporative cooling.

The Sentinel 5850 includes a standard garden hose connection for water supply. For units that will be permanently installed, a 1/4" compression fitting is provided to connect to a water line.

A single Sentinel nozzle covers more than 5,000 sq. ft. thanks to an exit velocity of 40-50 ft/sec and still air penetration of 50-75 feet. And the coverage area is significantly greater when humidifying such "tight" spaces as wine barrel rooms or closed warehouses with good control of vapor losses.

The Sentinel 5850 offers several types of controller to regulate fogging activity. These include: a programmable 7-day event timer, repeat cycle timer, countdown timer, relative humidity sensor/controller and manual on/off.

And a remote control option allows users to integrate fogging into their processes. Any device able to close a switch can control fog application.

Sentinel 5850 installations may be either fixed or mobile.

Permanent "bolt to the wall" installations support any number of nozzles, but 1-4 is typical. These use a single-phase 120V circuit.

For more information about winery applications, please see Information Sheet

For more information about industrial applications, please see Information Sheet

For more information about Sentinel 5850 Plumbing & Instrumentation, please see File
