Weber Sensors 4120.12A S110/67 Flow-Captor Flow Switch for Water-Based Media with Analog LED Display (0.2-3m/s Range) PBTP 1/2" BSP 67mm

Flow switch for liquid media Flow-Captor 4120.12A S110/67

The flow-captor 4120.12A S110/67 is ideally suited for use in automation processes or other industrial applications where liquid media must be monitored. The sensor works according to the calorimetric measuring principle, fully electronic and without mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal.

Features:

• Precise switching flow monitor
• High switching accuracy even with slower flows
• Separate adjustment of set point and range
• Display of the flow and the switching point via LED chain
• LED for output status
• Robust industrial design (special encapsulation)
• ISO 9001:2015

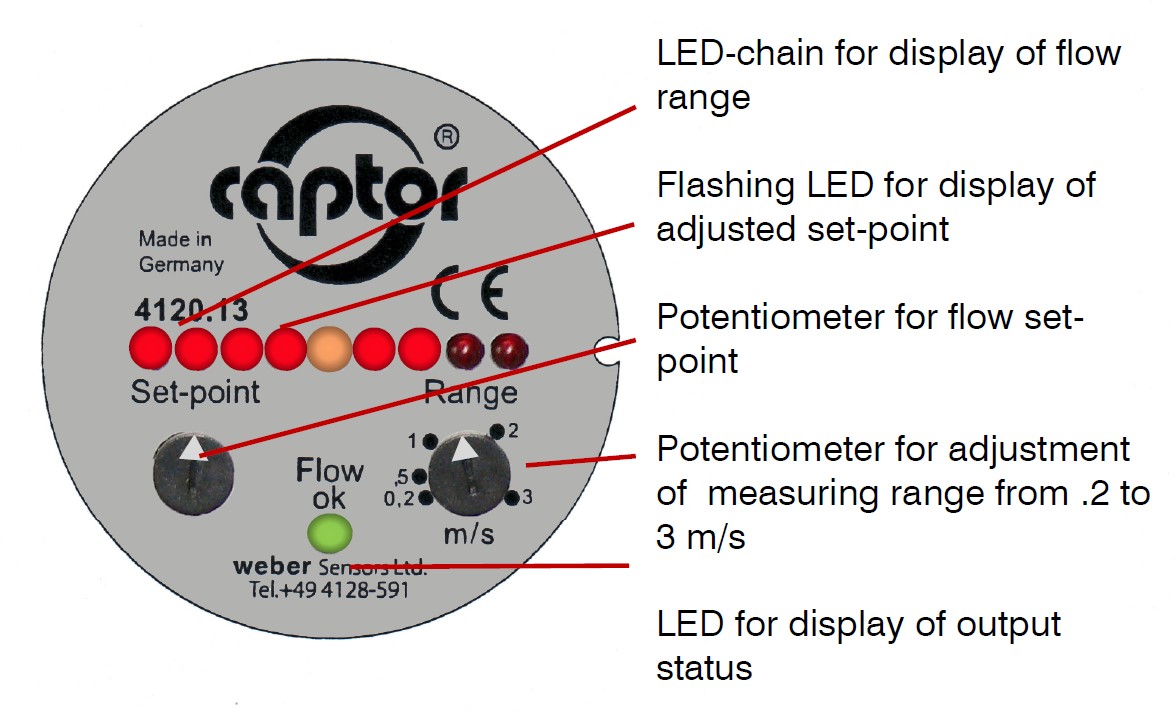

Control and Display Panel

Sensor Head

The sensor head is constructed of only one piece of electropolished stainless steel and without any sensor element intruding into the medium. Easy installation by means of T-piece or welded fitting. The housing is constructed of glass fibre reinforced PBTP (Ultradur ®). The electronics inside is completely epoxy resin encapsulated.

For more information, please see Instruction Manual
