TOA V-01S 900 Series Remote Master Volume Control Module (VCA) Line In/Out Control In 24VDC Out Interfaces to RDL RLC3

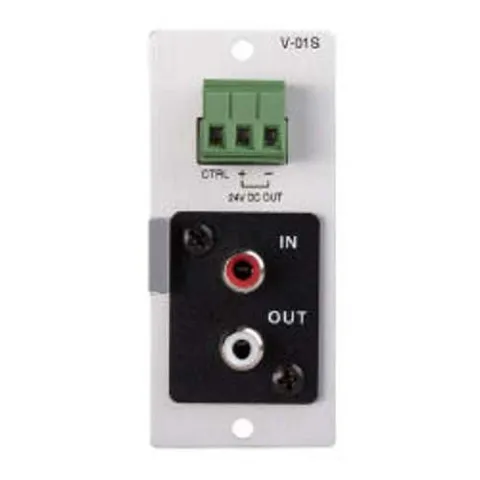

The V-01S is a plug-in type VCA module designed to be used in conjunction with TOA's 900 Series and BG-2000 Series amplifiers. Its 3P terminal block is equipped with a 24 V output that supplies power to an external controller, and a control input. The gain between IN and OUT is set within the range of -100 to 0 dB referenced to the 0 - 10 V control voltage.

Features:

• Voltage Controlled Amplifier (VCA) for applications requiring preset remote master volume control
• Line input and output connect to host amplifier's pre-amp output and power amp input
• 24 VDC output and control input interfaces directly to RDL RLC3 remote level control
• RCA and phoenix-style connectors
• For 10k potentiometer volume control, use U-21S

For more information, please see Data Sheet
