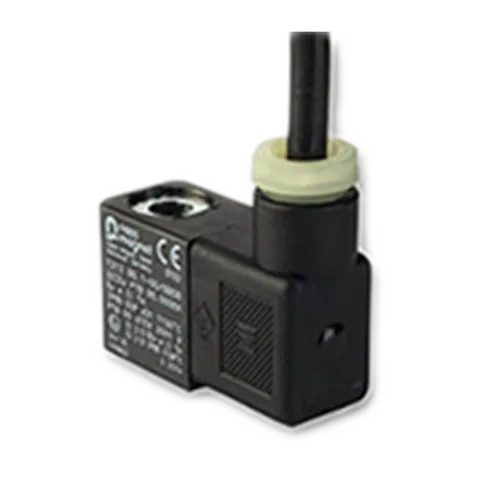

STC 200C-2-ATEX 24VDC ATEX Explosion Proof Coil 22mm Wide, 3-Meter Cable,4.5W, T4

ATEX Explosion Proof Coil for Models: 2P025, 2V025, 3P010, 2S012-020, 3S012, 2V130-250, 3V110-410, 4V110-410 (Valve Body is Not Included)

Features:

• 24VDC, 5.0W
• Ex II 2 G Ex mb IIC T4 Gb
• Ex 2 D Ex mb tb IIIC T130°C Db
• IP65, Class F Insulation, 100% Duty Cycle
• Max. Media Temp. 176°F (180°C)
• Ambient Temp: -4 to 122°F (-20 to 50°C)
• DIN 43650B Connection with 10ft 3-Wired Cable & Sleeve Included
• RoHS Compliant

For more information, please see Data Sheet
