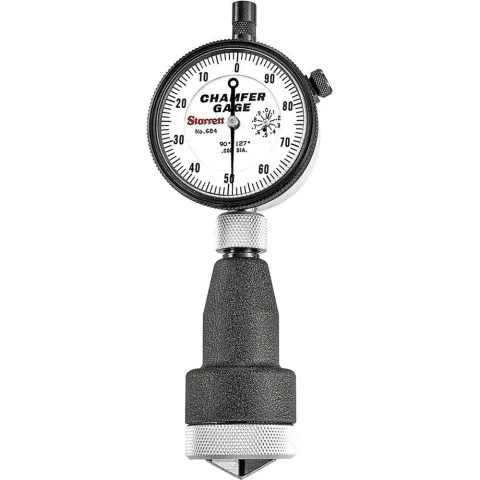

Starrett 63690 684-3Z Internal Chamfer Gage: 0 to 1", 90 to 127 Deg -3-Blade Plunger

These gages directly measure the diameter of chamfered holes. No setting master is necessary. When the three-blade plunger is pressed against a fl at surface, the gage should read the set number stamped on the back of the indicator. In case of wear, the gage may be adjusted to read the proper number. 0-1" Range In case of wear, the gage may be adjusted to read the proper number.

Features:

• When the three-blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
• No setting master is necessary
• Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
• Gages are also available with electronic indicators on request
• Deluxe Padded Case
• All ground surfaces are of hardened tool steel
• Indicators are AGD design
