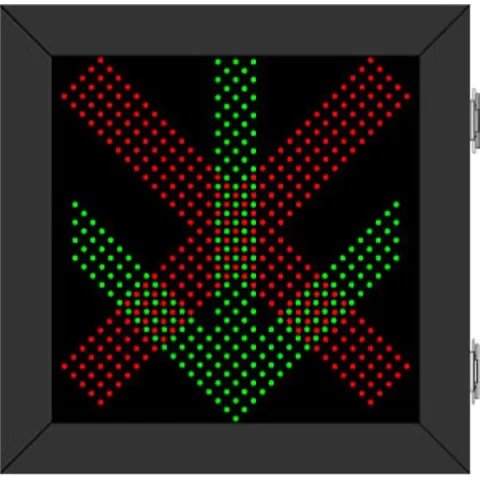

Signal-Tech 68170 DOT2323RG-175/9-24VDC X | Down Arrow DOT LED Blank-Out Sign

This DOT Series X | Down Arrow sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 23.000" x 23.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.

Amps At 120V: 0.26
