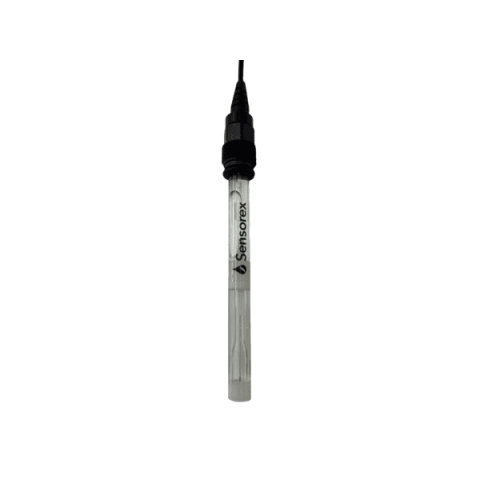

Sensorex SG354CD-HT SG354 Series Glass-Body Flat Surface pH Electrode w/ High Temp Reference Gel

The Sensorex SG354 series flat pH glass body sensors offer a robust pH membrane to reduce breakage and the flat membrane offers self-cleaning action in flow. The high surface area, dirt repellent porous HDPE junction works well even in dirty applications. Double junction reference design slows down the contamination process to provides long sensor life. A salt ring in the double junction provides a visual indicator of electrode life. Connector is S8 detachable head (requires ext. cable DIN-EL/X). Both the fixed cable with PG13.5 and the S8 version permit connection into mounting blocks with PG13.5 threads. All sensor versions are supplied with a plastic spacer and O-ring for sealing into the flow mounting block.

Features:

• SG354 sensors feature a special high molarity reference design for stability, reliability and maximum service life in demanding pool and spa, or light industrial applications!
• Designed for demanding applications with Double junction reference and salt ring for extended sensor lifetime
• Crystallite structure provides a visual indication, alerting you when it is time to order and have an on-hand replacement electrode, before it requires changing
• Low Impedance flat glass for fast response time

Configuration: SG354 Series Glass-Body Flat Surface pH Electrode w/ High Temp Reference Gel

For more information, please see Specification Sheet and Manual
