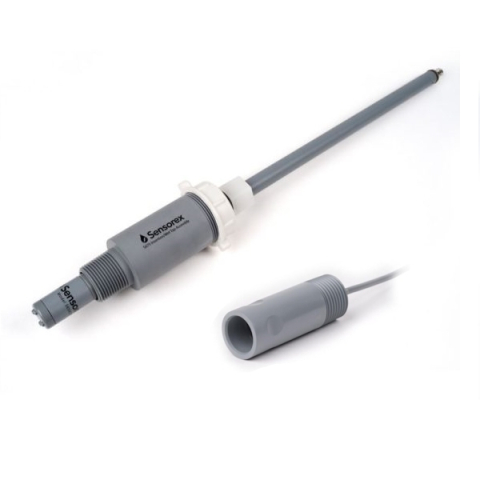

Sensorex S6800 S656CD pH Electrode, CPVC Hot Tap 12" Insertion Assembly & S653 Cable Assembly Kit w/ 10' Cable, BNC Connector

Users installing into large tanks, large process lines and scrubber lines will appreciate this hot tap assembly sensor kit. Adjustable insertion depth up to 12" ensures sensor is in flow for best results. Designed in CPVC for a user friendly cost compared to expensive stainless models, the S675 hot tap insertion assembly is well suited for most water and wastewater treatment applications. Incorporates optional automatic temperature compensation (ATC) with 1000Ω RTD. Supplied with 10 foot cable. Kit also includes (1) S656CD Flat Surface pH Cartridge and S653 Cable Assembly. The BV-1 Ball Valve (sold separately) facilitates removal from system without need for shutdown.

Features:

• Durable CPVC construction: Durable design suitable for most applications
• Simple maintenance: Remove sensors for cleaning and maintenance without system shutdown
• Easy installation: Mount in any orientation for ease of accessibility

Configuration: S656CD pH Electrode, CPVC Hot Tap 12" Insertion Assembly & S653 Cable Assembly Kit w/ 10' Cable, BNC Connector

For more information, please see Specification Sheet, Manual for no-ATC Assemblies and Manual for ATC Assemblies
