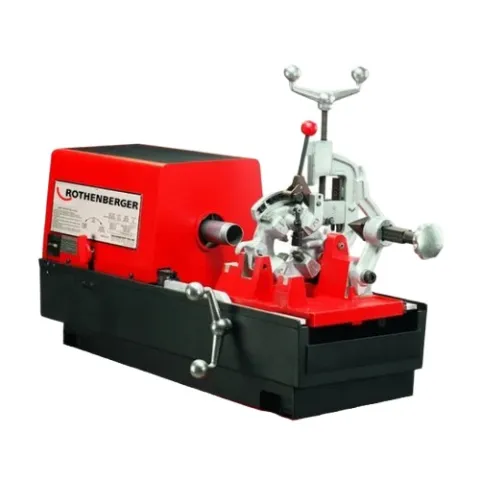

Rothenberger 00579 Collins Classic 22A Threading Machine with Snap-O-Matic Die Heads/Dies, 72 rpm, 115V

Includes:

• Collins Classic 22A with Snap-O-Matic Die Heads/Dies, 72 rpm, 115V

This top-of-the-range production style threading machine is suitable for the most demanding pipework applications, on-site threading, prefabrication work, or even production applications. Completely versatile - handles even difficult make-on or breakdown of fittings. High performance output in every way, the result from over 45 years producing the tried and tested Collins® pipe threaders.

Features:

Drive Motor:

• Heavy duty, 115 V, universal AC/DC, 50/60 Hz. Develops up to 2.3/4" HP
• 6 brush motor for higher torque
• Easy to service
• Left and right hand optional
• 84db on A scale noise level

Pipe Cutter and Reamer:

• Precision pipe cutter with dual guide for accurate pipe cutting
• 5-Blade conical reamer
• 1/2 HP

No-Load Spindle Speed:

• 72 rpm
• Optional 54 and 100 rpm

Die Heads:

• Snap-O-Matic® die heads (2) are standard
• Simple, quick change of dies without time consuming adjustments
• All controls are clearly marked.
• Automatically adjusted thread length
• Adjustable thread depth
• Threading range:
• Pipe or conduit 1/8" to 2"
• Bolt or rod 1/4" to 2.1/4"
• Uniquad® head optional

For more information, please see Catalog
