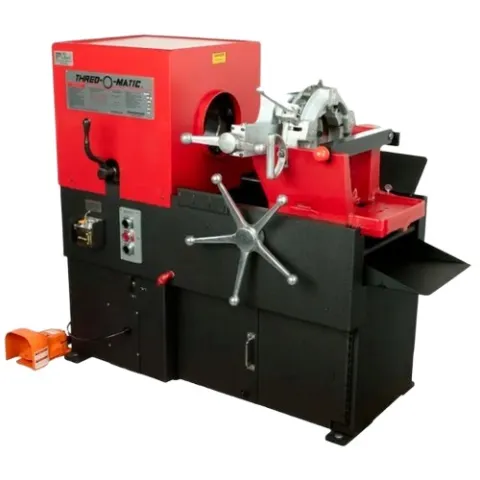

Rothenberger 00174 Collins 66A Thread-O-Matic High Performance Threading Machine, 5 H.P, 230/460V, 3 Phase, 50-60Hz, 1170 rpm

Top of the line high production units includes Die heads 1⁄2" - 3⁄4", 1" - 2", 2.1⁄2" - 3" & 3.1⁄2" - 4", small die head adaptor, cone reamer assembly and NPT High Speed Dies.The 44A's heavy duty construction includes welded steel plate frame and base.

Engineered with the same heavy duty construction as the 44A, the 66A features a welded steel plate frame and base.

Features:

Range:

• Pipe or conduit 1" - 6"Bolt or rod 32-90 mm, 11⁄4" - 4"

Motor:

• 5 H.P, 230/460V 3 phase, 50-60Hz 1170 rpm (instant reversing)

Spindle Speed while Threading:

• 1/2" - 2" 62 rpm
• 2.1/2" - 3" 32 rpm
• 3.1/2" - 4" 16 rpm
• 5" - 6" 11 rpm

Switches:

• Three-station push button switch (forward-stop-release) Optional toggle type (right hand-left hand)

Starter:

• Magnetic with thermal overload

Oil Reservoir:

• 5 gallon capacity

For more information, please see Catalog
