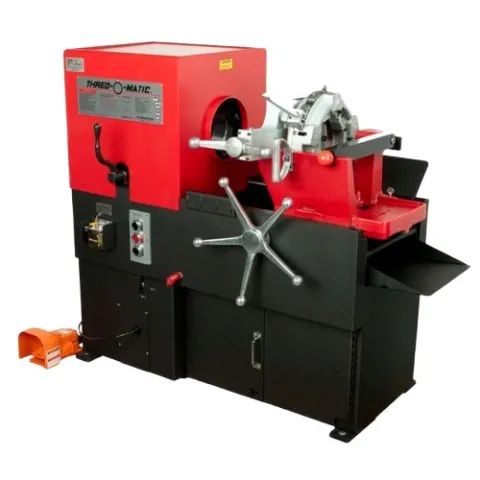

Rothenberger 00039 Collins 44A Thread-O-Matic High Performance Threading Machine, 5 H.P, 230/460V, 3 Phase, 50-60Hz, 1170 rpm

Top of the line high production units includes Die heads 1⁄2" - 3⁄4", 1" - 2", 2.1⁄2" - 3" & 3.1⁄2" - 4", small die head adaptor, cone reamer assembly and NPT High Speed Dies.The 44A's heavy duty construction includes welded steel plate frame and base.

Features:

Range:

• Pipe or conduit 1⁄2" - 4"Bolt or rod 19-76mm, 5⁄8" - 3"

Motor:

• 5 H.P, 230/460V 3 phase, 50-60Hz 1170 rpm (instant reversing) Optional 5 H.P, 230/460V 1 phase, 50-60Hz 1170 rpm
• Optional 10 HP, 230/460V, 3 phase, 50-60Hz, 1800 rpm

Spindle Speed while Threading:

• 1/2" - 1" 48 rpm
• 1.1/4" - 2" 26 rpm
• 2.1/2" - 3" 16 rpm
• 3.1/2" - 4" 12 rpm

Switches:

• Three-station push button switch (forward-stop-release) Optional toggle type (right hand-left hand)

Starter:

• Magnetic with thermal overload

Oil Reservoir:

• 5 gallon capacity

For more information, please see Catalog
