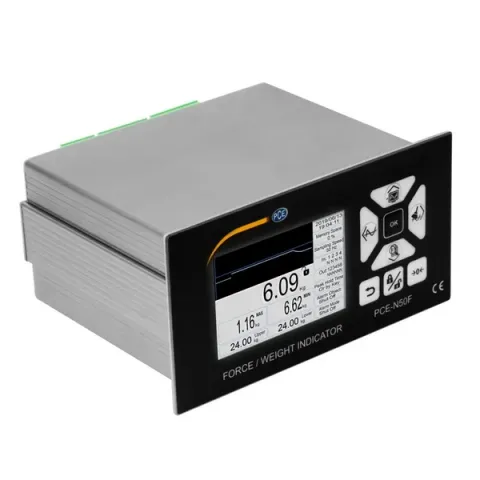

PCE Instruments PCE-N50F Weighing Indicator for Load Cells, Force Sensors etc. Up to 1600 Hz Measuring Range

The weight indicator is suitable for panel mounting. This weight indicator can be used to show the weight, force or torque. The decisive factor here is the type of sensor that is connected to the  weight indicator. The calibration of the weight indicator to the respective measuring cell is made via the menu with the aid of exact calibration weights. The weight indicator is used for stationary and individual weighing solutions. Often the weight indicator is used where the weight has to be determined continuously.

The display of the weight indicator device is a graphic display, which shows not only the numerical measured value but also the course of the weighing process. The weight indicator also displays the minimum and maximum weighing values. Using the keys, the weight indicator can be tared or set to zero. In addition to the operation via the keys, the weight indicator can be operated via the rear-side digital inputs. So external buttons can be connected, which tare the force display device etc.

Features:

• Up to 1600 Hz sampling rate
• LC display
• Minimum and maximum value determination
• Tare and zero function
• For load cells, force sensors, etc.
• Digital inputs and outputs

Includes:

• 1 x Weight indicator PCE-N50F
• 1 x User manual
