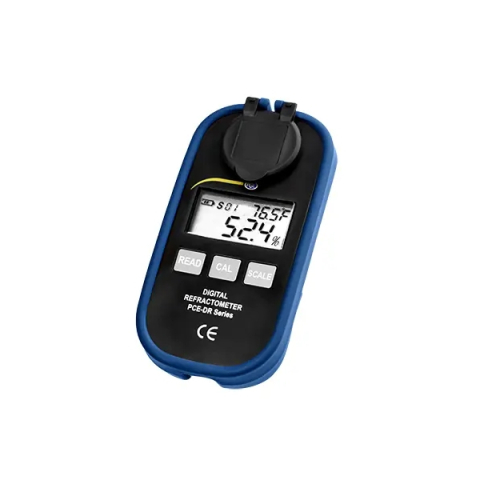

PCE Instruments PCE-DRA 1 Waterproof IP65-rated Antifreeze Digital Refractometer for Use with Propylene Glycol- and Ethylene Glycol-Based Solutions

PCE-DRA 1 is a handheld digital antifreeze refractometer used to determine the percentage or content and freezing point of propylene glycol- and ethylene glycol-based solutions. This waterproof IP65-rated digital refractometer features automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F, as well as a large, easy-to-read LCD that shows both the measured value and the temperature.

Note:

• Will not work with Organic Acid Technology (OAT) or Orange antifreeze
• Close lid before measuring

This antifreeze refractometer PCE-DRA 1 is used for the rapid determination of the antifreeze content in aqueous solutions. With this digital coolant refractometer PCE-DRA 1 you can quickly and accurately determine the content of the antifreeze in your equipment and machines. This handy refractometer PCE-DRA 1 is used in industry as well as in the automotive sector.

Simply put a few drops of the liquid into the stainless steel sample tray with the glass prism, close the lid, start the measurement and read the result on the display. Per measurement, the digital refractometer PCE-DRA 1 can determine either the concentration or the freezing point of the mixture.

Features:

• Measurement parameters: Ethylene glycol, propylene glycol, temperature
• Automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F
• Handheld and portable
• User-friendly 3-button operation
• Fast and precise measuring results in approx. 1 sec.
• ABS plastic housing with IP65 ingress protection rating against water and dust
• Large, easy-to-read digital LCD shows both the measured value and the temperature
• Average function measures same sample 15 times and displays the mean value
• Stainless-steel ring on sample well protects glass prism from damage
• Internal light source for improved accuracy
• Small liquid sample size of just 4 to 5 drops
• Easy calibration with distilled water
• Battery-saving automatic power off after 1 min. of inactivity

Includes:

• 1 x PCE-DRA 1 antifreeze digital antifreeze refractometer
• 1 x pipette
• 1 x prism cover
• 1 x 1.5V AAA battery
• 1 x user manual
• 1 x carrying case
