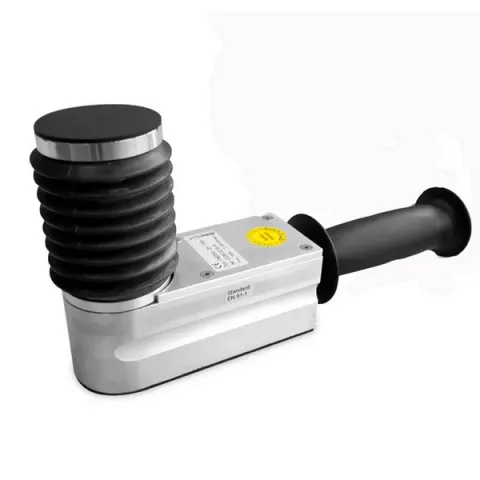

PCE Instruments FM300BT-SY-25-750 Closing Force Transducer FM300 BT for Elevator Doors Machine Protection Device

The closing force transducer from Drive Test is a wireless, electronic closing force measuring device for automatic elevator doors and machine guards. With the FM 300 BT, Drive Test delivers a further development of the tried and tested FM 300 measuring device. It combines the well-known robust design for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Features:

• Easy to use - implements experience from years of use
• Extensive customer service - in-house calibration service and software updates ensure the
• Use of current guidelines
• Immediate evaluation - according to selected guidelines and standards
• Process reliability - integrated test instructions ensure that the measurement is in line with the guidelines
• Large temperature working range
• Language selection - Available in DE/ EN/ ES/ FR/ IT/ CN
• Support of relevant standards - EN 81-1, EN 81-2, EN 81-20:2014, EN 81-50:2015, EN 14120
• Precise measurements - due to friction-free guidance and platform load cell
• Robust design - housing made of high-strength material for a long service life in tough applications
• Wireless - no more annoying cables
• Measuring point identification - via QR and barcodes (integrated solution)

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Includes:

• 1 x Closing force transducer FM300 BT
• 1 x App Force Meter available for download
• 1 x Software PinchPilot (USB stick)
• 1 x PC connection cable (USB)
• 1 x Manual
• 1 x Transport case with foam insert
• 1 x ISO calibration certificate
