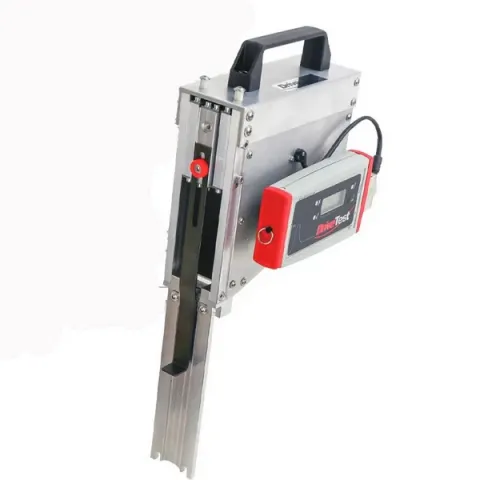

PCE Instruments FM208-AU-SY-02-200 Closing Force Measuring Device FM208 Sliding Roofs Automatic Windows Tailgates

The closing force measuring device is an electronic measuring device for sliding roofs, automatic window lifters and tailgates in the automotive sector. Typical applications are manufacturing, development and production tests in the automotive industry. The closing force gauge with its low spring stiffness was developed to test soft elements that are clamped into a closing system. The device excels with easy handling for repetitive measurements. Its uncompromising design combines precision with practical robustness and ensures accurate readings even after years of use in harsh environments.

For measurement set-ups in testing and manufacturing, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented.

Features:

• Support of relevant standards - 2000/4 EG, US Standard FMVSS 118, ECE-R 21; additional measurement with low spring stiffness: 2 N/mm
• Precise measurements - due to friction-free guidance and platform load cell
• Robust design - durable aluminum ensures a long service life in tough use
• Professional, extensive PC software - PinchPilot leaves nothing to be desired
• Complete scope of supply - includes all necessary components for tailgates, windows and Sunroofs packed in a high-quality transport case
• Accessories for every application - spacers (200 mm), force introductions (clamp and platform), Monopod, Bumper Support Block, Window Support Block, Sunroof Support Block, sunroof spacer

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Includes:

• 1 x Closing force measuring device FM208
• 1 x Display unit SEB2 separate with LCD display, LED status indicators, operating button and USB interface
• 1 x 9 V block battery
• 1 x Accessory for each application: Spacer (200 mm), force inputs (clamp and platform), monopod, bumper support block, window support block, sunroof support block, sliding roof spacer
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x USB stick with PC evaluation software PinchPilot
• 1 x Manual
• 1 x ISO calibration certificate
