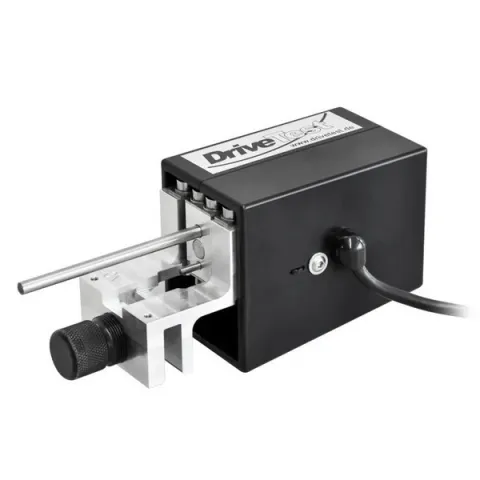

PCE Instruments FM205-WI-SY-10-150 Closing Force Measuring Device FM205/5 for Automatic Window Regulators

The closing force measuring device is an electronic closing force measuring device for power-operated windows in the automotive sector. Typical areas of application are testing and production in the automotive industry. For this purpose, this device was developed and is easy to use for repetitive measurements. Due to the requirements of various common standards, this device has different spring stiffnesses. It is also increasingly used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measurements even after years of use in harsh environments.

For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented.

Features:

• Precise measurements - due to friction-free guidance and platform load cell
• Robust design - high-strength aluminum and POM ensure a long service life in tough applications
• Ease of use - single button operation or remote control via Microsoft® DLL - Interface or National Instruments® LabVIEW library
• Professional, extensive PC software - PinchPilot leaves nothing to be desired
• Complete scope of delivery - including high-quality transport case

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Includes:

• 1 x Closing force measuring device FM205/5
• 1 x Sensor 5N/mm
• 1 x SEB2.2 indicator
• 1 x PinchPilot software
• 1 x ISO calibration certificate
