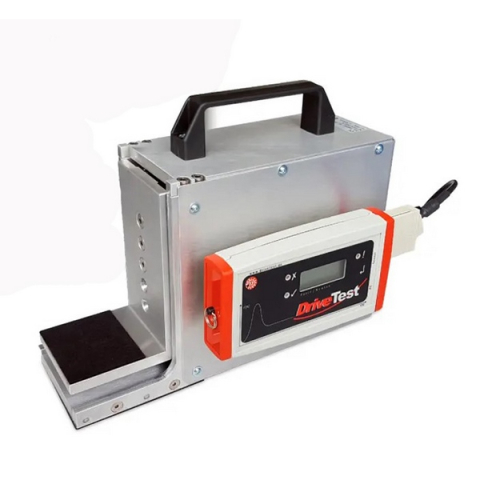

PCE Instruments FM202-UN-SY-10-600 Closing Force Measuring Device FM202 Sliding Roofs Window Lifters Doors Steps

The closing force measuring device is an electronic measuring device for power-operated windows, sliding roofs and doors in the automotive sector and for sliding steps in the rail vehicle sector. It allows measurements up to 600 N with a spring stiffness of 10 N/mm. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented.

Features:

• Applicable standards - 2000/4/EC or user-defined
• Precise measurement results - ensured by frictionless guide and platform load cell
• Robust design - housing made of high-strength aluminium and stainless steel for long service life in heavy use
• Easy to use - operation with a single control button or remotely via Microsoft® DLL
• interface or National Instruments® LabView library
• Professional, comprehensive PC software - PinchPilot leaves nothing to be desired
• Wide measuring range - max. 600 N at 10 N/mm spring stiffness over the entire measuring range
• Excess force - applicable for excess force measurement
• Complete scope of delivery - all components in high-quality carrying case

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Includes:

• 1 x Closing Force Measuring Device FM202
• 1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display, membrane key and serial interface
• 1 x 9 V block battery
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x USB stick with PC evaluation software PinchPilot and documentation
• 1 x Manual
• 1 x ISO calibration certificate
