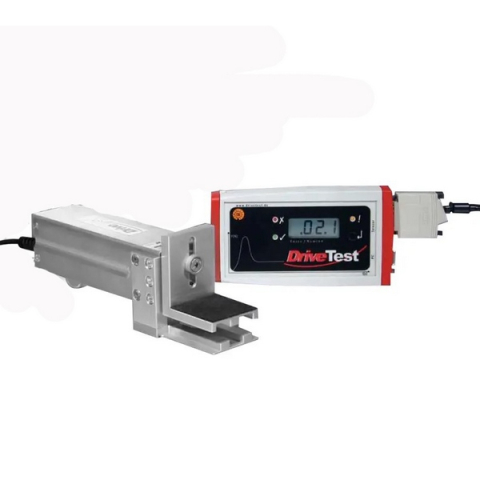

PCE Instruments FM200-SU-SY-10-200 Closing Force Transducer FM200/20 for Sliding Roofs Window Lifters Tailgates

The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry. It is also increasingly being used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

When it comes to measuring setups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented.

Features:

• Support of relevant standards - US Standard FMVSS 118
• Precise measurements - due to friction-free guidance and platform load cell
• Robust design
• Ease of use - single button operation or remote via Microsoft® DLL interface or National Instruments ® LabVIEW library
• Complete scope of delivery - including high-quality transport case and software
• Professional, comprehensive PC software - PinchPilot
• Comprehensive user support - calibration service, standard change service ensures the application of the latest version of the standard
• Flexible adjustment - made possible by a variety of available force introductions: Customizations also available from DriveTest

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Includes:

• 1 x Closing Force Transducer FM200/20
• 1 x Sensor FM200-SU-SE-20-300
• 1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display, membrane button and serial interface
• 1 x 9V block battery
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x USB data stick with PC evaluation software PinchPilot and documentation
• 1 x Manual
• 1 x ISO calibration certificate
