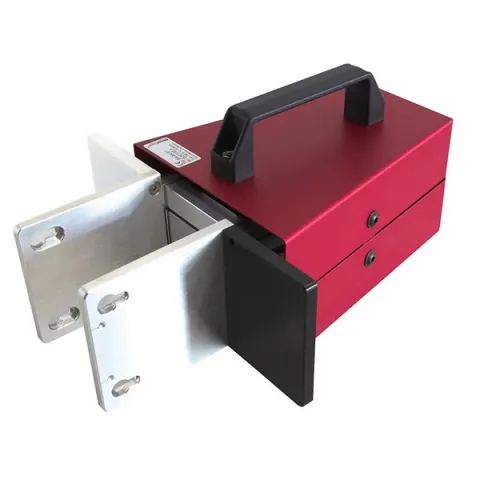

PCE Instruments BIA600BT-SY-10-700 Closing Force Measuring Device BIA 600 BT for Rail Vehicle Doors Sliding Steps

The closing force measuring device is a wireless, electronic measuring device for rail vehicle doors and sliding steps. The closing force measuring device is a further development of the well-established BIA600 closing force measuring device. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Features:

• Support of relevant standards - user guidance and evaluation according to EN 14752:2015, EN14752:2005
• Precise measurements - granted by friction-free guidance and platform load cell
• Robust design - housing made of high-strength material for a long service life in tough applications Wireless - no more annoying cables
• Measuring point identification - via QR and barcodes (integrated solution)
• Easy to use - implements experience from years of use
• Extensive customer service - in-house calibration service and software updates ensure the Use of current guidelines
• Immediate evaluation - according to selected guidelines and standards
• Process reliability - integrated test instructions ensure that the measurement is in line with the guidelines
• Large temperature working range
• Language selection - Available in DE/ EN/ ES/ FR/IT/ CN

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Force Meter App/Description

For the measuring devices you need one of the software tools. The software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• Download App in Google Play Store
• Android device
• for the following measuring devices: BIA-1 BT, BIA-600 BT, FM-100 BT, FM-300 BT

Technical requirements

• Mobile Android device (tablet/ smartphone)
• Android 5.0 or higher
• Bluetooth interface
• Bluetooth measuring device (wireless/ wireless)

Includes:

• 1 x Closing force measuring device BIA-600 BT
• 1 x Spacer (4 pieces) according to EN 14752:2015
• 1 x App Force Meter available for download in the Google Play Store
• 1 x Software PinchPilot (USB stick)
• 1 x USB Cable
• 1 x Manual
• 1 x Transport case with foam insert
• 1 x ISO calibration certificate
