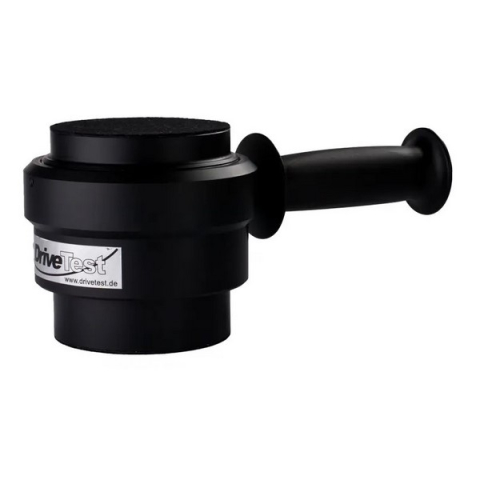

PCE Instruments BIA1-SY-10-310 Closing Force Measuring Device Original BIA Cl. 1 for Bus and Train Doors

The original BIA class 1 closing force measuring device is an electronic closing force measuring device for rail vehicle and bus doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements for a complete vehicle can be taken over, printed out in tabular form and saved in a database.

Features:

• Applicable standards - EN 14752:2005, VDV 111, 2001/85/EG
• Precise measurements
• Robust design
• Easy to use
• Operation with a single button or remotely via Microsoft® DLL interface or National Instruments® LabView library
• Complete scope of delivery - including high-quality transport case and software
• Professional, comprehensive PC software - PinchPilot
• Comprehensive user support - calibration service, standard change service
• Support for the management of large fleets

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Includes:

• 1 x Closing force measuring device BIA class 1 with 2.5 m connection cable
• 1 x Display device SEB2 separate measured value acquisition module with LCD and LED display membrane key and serial interface
• 1 x 9V block battery
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x USB data stick with PC evaluation software PinchPilot and documentation
• 1 x Manual
• 1 x ISO calibration certificate
