Overview

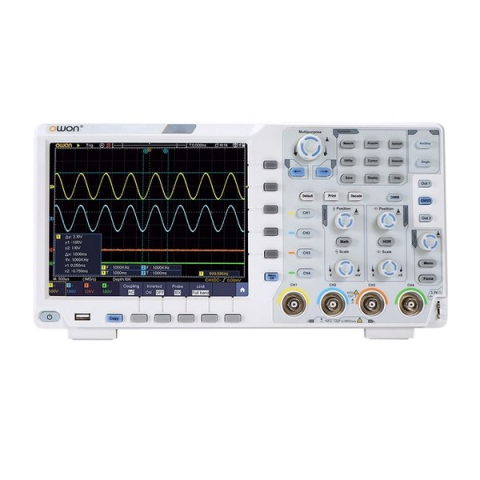

XDS3000-E Series 4CHs Touchscreen Digital Oscilloscope
Features:
- 200MHz Bandwidth, 1GS/s sample rate
- 12-bit high resolution ADC
- 40M record length
- Low back ground noise
- 12 inch 800 x 600 high resolution LCD, more user-friendly operation experience
- SCPI, and LabVIEW supported
- Multi- trigger, and bus decoding function
- Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX

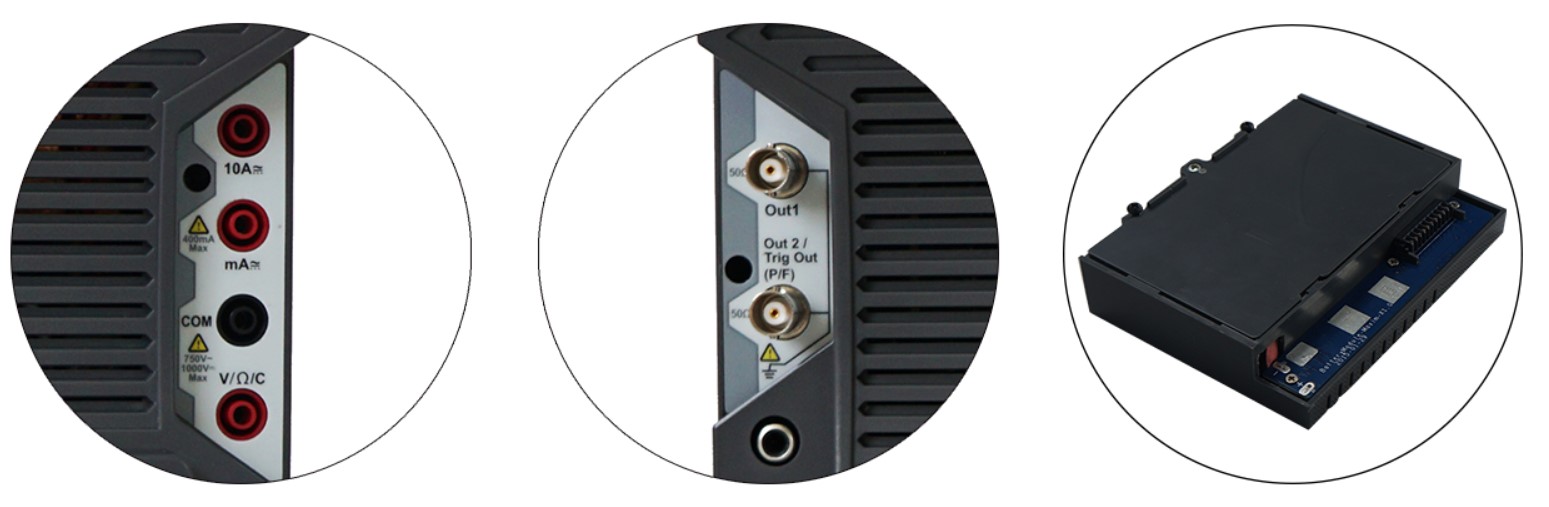

1. Multi-function mobile tester
Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.

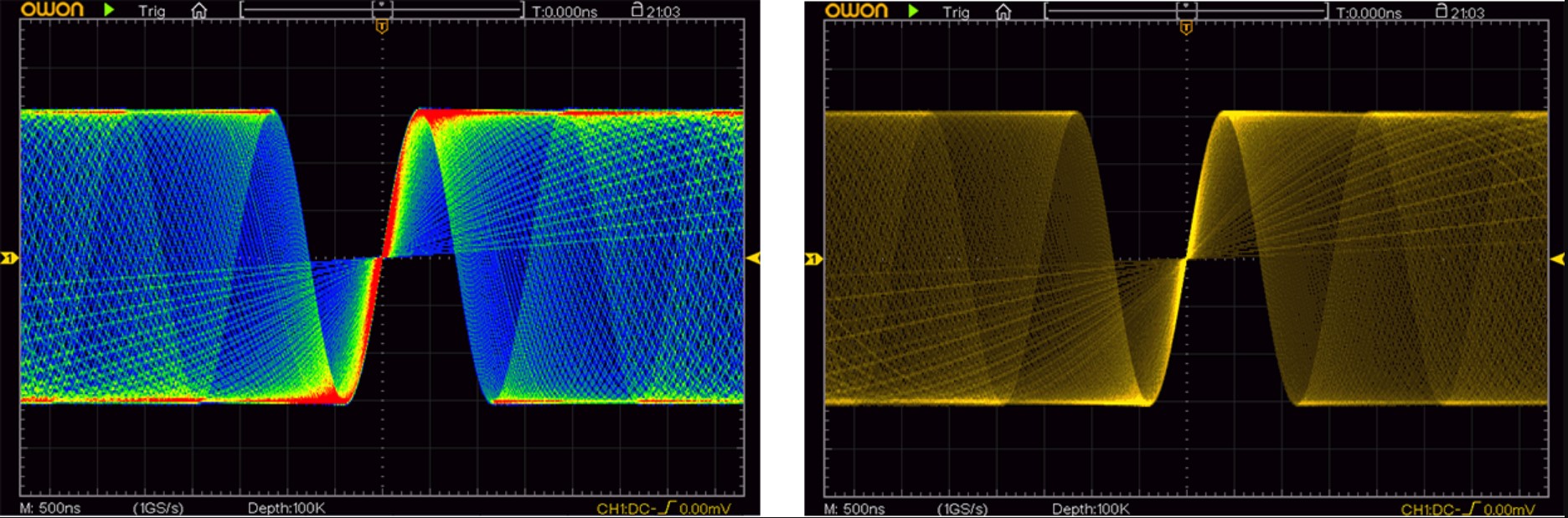

2. Leading 45,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.

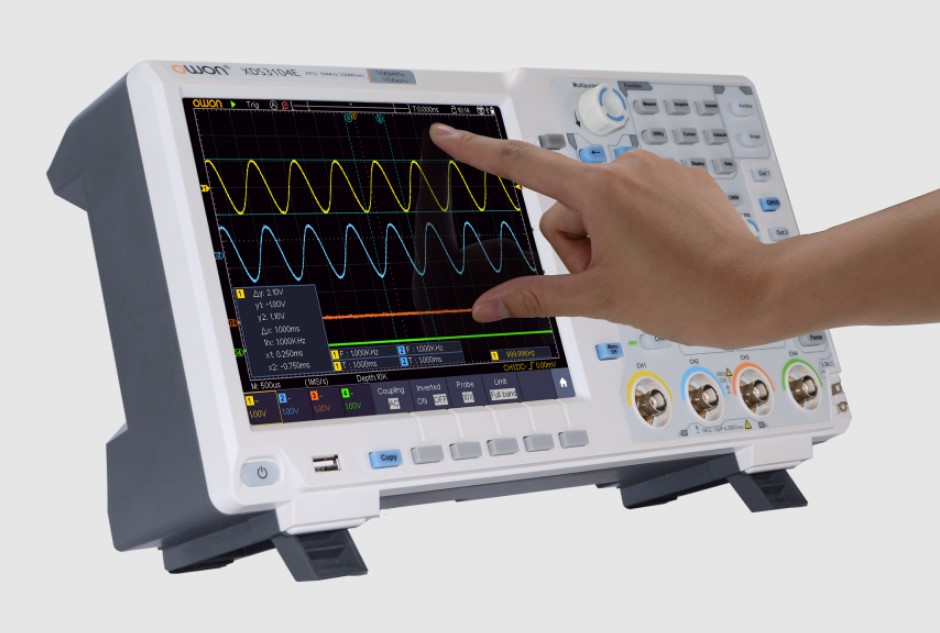

3. Multi-touch screen, easy to operate
Package Includes:
- Power Cord
- Quick Guide
- CD Rom
- USB Cable
- Probe
- Probe Adjust
For more information, please see Specifications and User Manual
