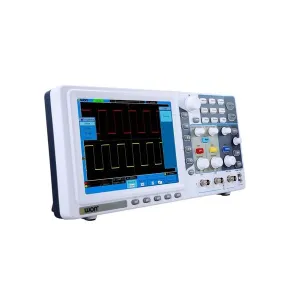

Owon SDS5032E-V SDS-E Series Digital Oscilloscope 30MHz 500MS/s 2CHs+1 (External) with VGA

SDS-E Series Digital Oscilloscope 30MHz 500MS/s 2CHs+1 (External) with VGA

Features:

• Bandwidth: 30MHz
• Sample rate: 500MS/s
• Ultra-thin body
• 8 inches high resolution LCD
• Pass / Fail function
• SCPI and LabVIEW supported

1. 8 inches large display

8 inches (800 x 600) TFT high resolution LCD display much detail. Horizontal 15 divisions and vertical 10 divisions, perfect than same level product.

2. Auto-scale function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

3. Pass/Fail function

Pass/Fail function can compare the template signal edit by user (horizontal and vertical occupation) with input signal. Meet the requirement for long-term signal monitor, production monitor, filter and control.

4. Waveform Record/Play

SDS series waveform record/play function support 2-channel waveform record. Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.

Package Includes:

• Power Cord
• Quick Guide
• CD Rom
• USB Cable
• Probe
• Probe Adjust

For more information, please see Specifications and User Manual
