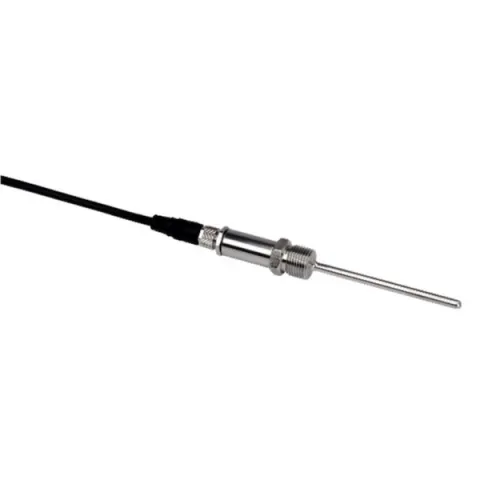

NOVUS 8806060609 TxMini-M12-MP Pt100 Stainless Steel Probe, 6 x 50 mm, 1/4 BSP, Female M12, Cable 1 m, 4-20 mA Output

TxMini-M12-MP Transmitter is a two-wire 4-20 mA type temperature transmitter powered by the current loop. You can use the SigNow software or app to configure it. To do this, simply connect the TxConfig-M12 Configuration Interface to the computer or smartphone being used. To configure it, the transmitter does not need to be powered.

The output current is linearized according to the signal applied to the transmitter input and adjusted according to the configured scale.

The TxMini-M12-MP is a compact, fully integrated temperature transmitter featuring a Pt100 sensor in a stainless steel probe with 1/4" BSP mounting thread. This all-in-one unit combines a Class A Pt100 element with a 4-20mA transmitter in a single rugged housing, eliminating the need for separate sensors and transmitters. The 6mm diameter by 50mm long probe is ideal for applications with limited space or where fast response time is critical. With its 1-meter cable terminated with a standard M12 connector, it offers quick and reliable connection to control systems, PLCs, and automation networks. The 4-20mA analog output provides noise-resistant signal transmission over long distances, making it perfect for industrial temperature monitoring in OEM equipment, hydraulic systems, and compact process applications.

For more information, please see Manual
