NOVUS 8803656700 RHT-P10 Sealed Remote Sensor, 3 m Cable, 1/2 BSP, 4-20mA

The RHT-P10 transmitters have highly accurate and stable sensors for measuring relative humidity and temperature. The measured values are converted into 4 to 20 mA output signals that are linearly related to their readings. Since they are microprocessor-based devices, they can be configured using the TxConfig-USB communication interface and the SigNow app or software, which is available for Android and Windows. The outputs can be configured to retransmit temperature, relative humidity, or dew point.

The RHT-P10 model is suitable for monitoring temperature and relative humidity in pressurized environments and vacuum chambers. The sensor module has a metal body with a thread, suitable for fixing to a flange. The model is suitable for applications where the sensor module needs to be separate from the electronic module, but in the same pressure environment.

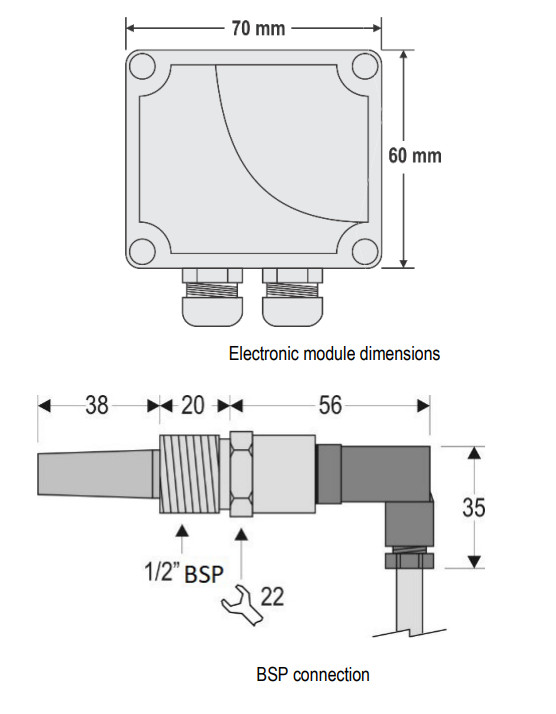

The electronic module of RHT-P10 must be fixed to the wall. The remote sensor module, on the other hand, must be inserted into a threaded flange. By removing the cover of the transmitter electronic module, you have access to the two fixing holes

Note:

• The flange for RHT-P10 is not included with the transmitter and must be purchased separately.
• The sensor used in this equipment may be damaged or lose calibration if it is exposed to atmospheres contaminated with chemical agents.Hydrochloric Acid, Nitric Acid, Sulfuric Acid, and Ammonia in high concentrations can damage the sensor. Acetone, Ethanol and Propylene Glycol can cause reversible measurement error.
