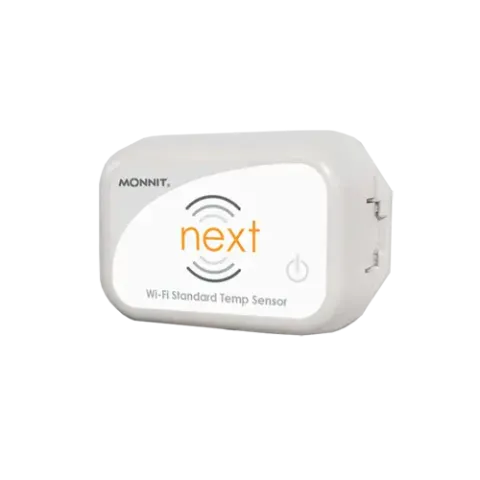

Monnit MNS2-NXT-TS-ST-L10 Next Wi-Fi Temperature Sensor, 10 foot probe

Principles of Operation

The Next Temperature Sensor measures temperature based on a user-configurable Heartbeat time interval. When measuring, the sensor momentarily energizes a thermistor in series with a precision resistor.

This produces a voltage directly proportional to the temperature of the thermistor. The sensor converts the analog voltage signal to a digital value and calculates the temperature. This measurement is then sent to the iMonnit Software through Wi-Fi.

You can calibrate the Next Temperature Sensor to improve accuracy. Additionally a 13-month ISO-17025 (NIST) certification is available.

Features:

• Measurement Range:
  • Leaded: -40°C to 100°C (-40°F to 212°F)
  • Non-leaded: Limited to the operational range of the sensor body (enclosure and body)
• Resolution: 0.1°C (0.18°F)
• Accuracy: ± 1°C (± 1.8°F)
• Calibrated Accuracy: ± 0.5°C (± 0.9°F)
• Configurable thresholds for critical condition monitoring

Example Applications:

• Ambient temperature monitoring
• Environmental monitoring
• Smart machines and facilities
• HVAC operation and testing
• Data center monitoring
• Additional applications

For more information, please see:

• General Information Guide - Next Wi-Fi Sensors
• Data Sheet - Next Wi-Fi Temperature Sensors
