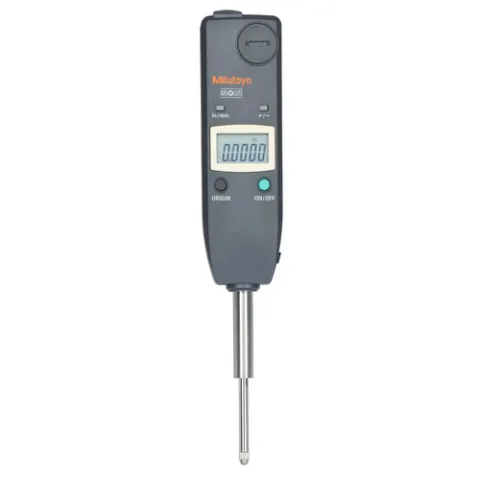

Mitutoyo 575-122 ID-U Series ABSOLUTE Digimatic Indicator ISO, 0-1" / 0-25.4 mm, Stem 8 mm Diameter, M2.5 x 0.45 Thread

The Mitutoyo ABSOLUTE Digimatic ID-U slim-design indicators are highly accurate, easy to use and suitable for installation into measuring devices for measuring short linear distances. Measurements are shown on an impact-resistant LCD display.

The Mitutoyo ABS digital ID-U digital indicators with a slim, simple design provide up to a 25.4 mm/1" range that is easy to use and read. Large push buttons provide direct, easy access to all of the indictor's functions, and readings are shown on a large 8 mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements. The indicator's 23 mm depth and approximately 20,000 hour battery life makes it suitable for installing in measuring devices.

Features:

• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Functions include Origin set, zero set, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, counting value composition error, over-flow error
• Unlimited response speed eliminates over-speed errors

For more information, please see Data Sheet
