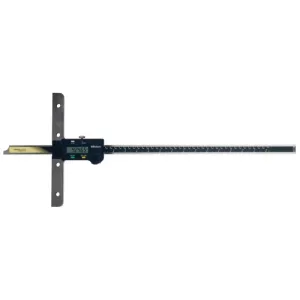

Mitutoyo 571-214-10 Series 571 ABSOLUTE Digimatic Depth Gage, 0-18" / 450 mm Range, 9.8 x 0.39" Base

The Mitutoyo ABSOLUTE Digimatic depth gage provides highly accurate depth measurements for any shape that has a step, groove or slot.

The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance. The depth gage is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making it ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording.

Features:

• Convenient mounting holes included on the base for repeatable accuracy
• Keeps track of the origin point for the life of the battery
• SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
• Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Constructed of hardened stainless steel for better durability and longevity
• IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
• Unnecessary to wipe or clean the scale
• Supplied with a fitted plastic case
