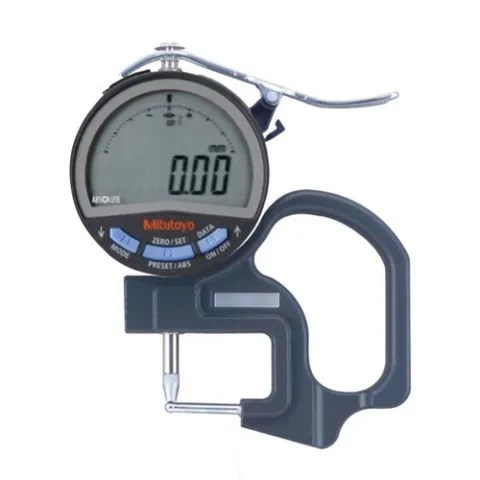

Mitutoyo 547-360A Series 547 Digital Pipe Thickness Gage, 0-10 mm Range

The Mitutoyo ABSOLUTE tube thickness gage features a curved contact point which provides highly accurate thickness measurements of tube and pipe walls. Measurements are shown on an easy-to-read LCD display.

The Mitutoyo ABSOLUTE tube thickness gage conveniently measures the wall thickness of curved pieces for a wide range of applications using materials up to 12mm/.47" thick. The tube thickness anvil reduces the surface area of the contact points for more precise point measurements of a piece's rounded surface. These indicators utilize the Mitutoyo ID-C and ID-S Digimatic indicators to provide error-free LCD readings. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.

Features:

• Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
• Signal can be output to external device; waterproof data output connector protects against dust, water and oil ingress
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Unlimited response speed eliminates over-speed errors
• Measuring force is 1.5N or less
• Supplied in a fitted plastic case
