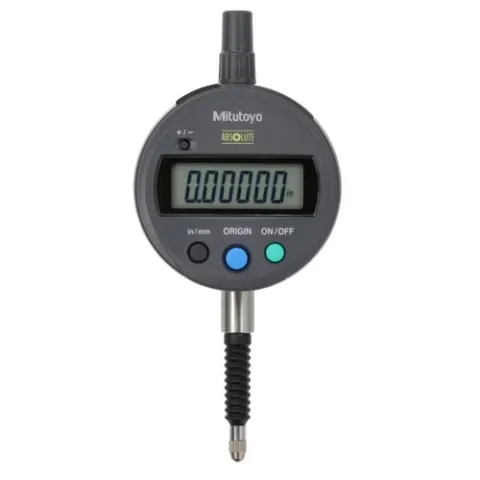

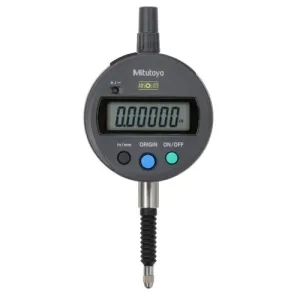

Mitutoyo 543-796CAL ID-S Series Absolute Digimatic Indicator AGD, Lug Back, 0.5"/12.7 mm Range, 0.00005"/0.001 mm Res., IP53 (Calibrated)

The Mitutoyo ABSOLUTE Digimatic ID-S indicators are highly accurate and easy to use for measuring short linear distances in many different applications. Measurements are shown on an impact-resistant LCD display.

The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7mm / .5" range in a compact design that is easy to use and read. Large push buttons provide direct, easy access to all of the indictor's functions, and readings are shown on a large 9mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements.

Features:

• Similar in size to standard Series 2 dial indicators
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Functions include Origin set, zero set, counting direction switching, power On/Off, data output
• Alarm: Low voltage, counting value composition error, over-flow error
• Unlimited response speed eliminates over-speed errors
• IP42 for protection against objects greater than 1mm and water
• Supplied in a fitted plastic case
• All Calibrated Products have an ISO/IEC 17025 Accredited Certificate of Calibration packaged with the product, representing the best practice in calibration. Calibrations are performed at the Mitutoyo America Corporation A2LA Accredited Calibration Laboratory in Aurora, Illinois.
