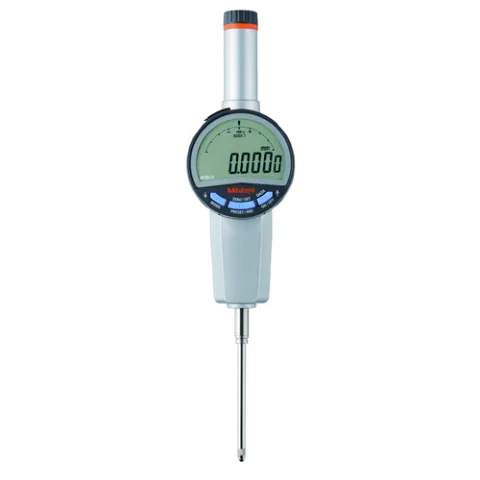

Mitutoyo 543-732B ID-C Series ABS Digimatic Indicator AGD, Flat Back, 2"/50.8 mm Range, .00002/.00005/.0001/.0005", .0005/.001/.01 mm Res.

ID-C Series support bidirectional communication between the ID-C and the computer, enabling data output to a computer and setting of various functions of ID-C from a computer.

Features:

• The ABS (absolute) scale restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
• Tolerance judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/NO-GO) can be displayed in full-size characters.
• An analog bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable.
• Battery life of approx. 2.5 years under normal use has been achieved with only one battery.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.

Functions:

• Peak detection (MAX/MIN)
• Runout range measurement (MAX - MIN)
• Zero-setting (INC system)
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Resolution switching (For 0.0005 mm or 0.00002 inch resolution type)
• Simple calculation: f(x) =Ax
• Function Lock
• Calibration schedule warning
• Auto power ON/OFF
• Data output
• Display value holding (when no external device is connected)
• 330° rotary display
• Low battery/voltage alarm display
• Error alarm display

For more information, please see Data Sheet
