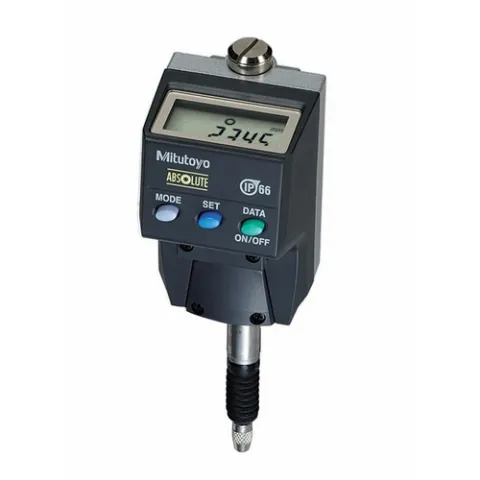

Mitutoyo 543-585 ID-B Series ABSOLUTE Back Plunger Type Digimatic Indicator, 5 mm Range, 0.001 mm Resolution

The Mitutoyo ABSOLUTE Digimatic ID-B series indicator offers a rotatable, mountable back-plunger style body and is ideal for measuring in harsh workshop conditions. Measurements are shown on a rotatable LCD display.

The Mitutoyo ABS ID-B Series digital indicator features a back-plunger style body that rotates up to 180 degrees for taking measurements from different directions. The body mounts to a leveling machine tool table or inspection jigs and its slim design allows for use in restricted spaces where graduations of standard gages are difficult to read.

Features:

• Signal can be outputted to an external device; waterproof data output connector protects against dust, water and oil ingress
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Functions include: Zero-setting, presetting, direction switching, tolerance judgment, display hold, data output, resolution switching
• Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• Sealed housing meets IP66 rating for improved protection against water, dust, oil and water jets
• Supplied in a fitted plastic case

For more information, please see Data Sheet
