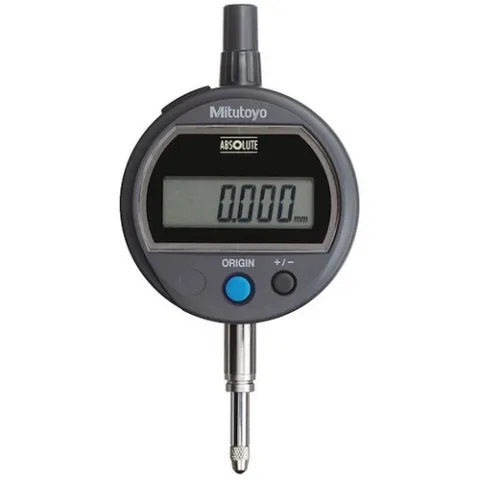

Mitutoyo 543-500 ID-C Series Absolute Digimatic Solar Type Indicator ISO, Lug Back, 12.7 mm Range, 0.001 mm Resolution

The Mitutoyo ABSOLUTE Digimatic solar powered indicators are highly accurate and easy to use while eliminating the need of a battery. Measurements are shown on an impact-resistant LCD display.

The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7 mm/0.5" range in a compact design that is easy to use and read. Large push buttons provide direct, easy access to all of the indictor's functions, and readings are shown on a large 9 mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements. The solar power source is ready for use from 40 lux illumination and a super capacitor maintains a reserve of about 3.5 hours under low light conditions.

Features:

• Similar in size to standard Series 2 dial indicators
• Solar power and battery backup allows for reliable, longer use in any location
• Solar panel is hard-coated for increased durability
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for fast and easy data management in real time
• Functions include Origin Set, Counting Direction Switching and inch/mm conversion (on inch/metric models only)
• Unlimited response speed eliminates over-speed errors
• IP42 for protection against objects greater than 1mm and water
• Supplied in a fitted plastic case
