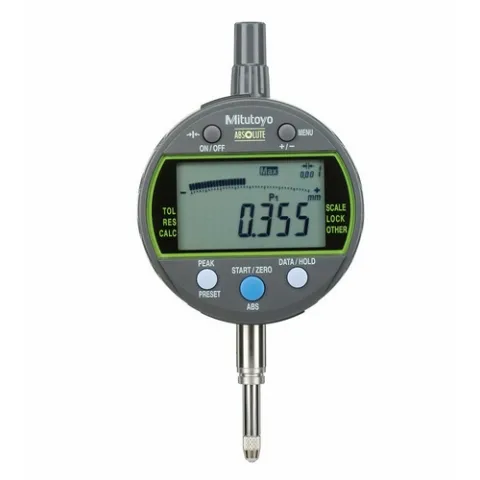

Mitutoyo 543-300B-10 ID-C Series Absolute Digimatic Max/Min Indicator, Flat Back, 12.7 mm Range, 0.01/0.001 mm Resolution

The Mitutoyo ABSOLUTE Digimatic ID-C Max/Min value holding function indicators show maximum, minimum or runout values during measurement on a large, easy-to-read LCD display.

The Mitutoyo ABS digital ID-C Max/Min value holding digital indicators feature peak hold function to provide fast, highly accurate maximum measurements. By setting upper and lower tolerances for maximum, minimum and runout values, the indicator performs Go/No-Go judgements for quickly checking tolerances on multiple workpieces. A Key Lock and Parameter Lock feature prevents accidental changing of settings during operation. The ID-C indicator shows readings on a large 11mm LCD display.

Features:

• Come with SPC output capabilities
• Fast measurement frequency allows users to increase the number of readings per second, from 10 to 50, allowing for higher accuracy measurements of TIR and MAX/MIN
• Improved parameter setting software
• Analog bar provides easy-to-read values when scanning for Max, Min and TIR values
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for fast and easy data management in real time
• Functions include Key lock, parameter lock, PC-USB input, analog bar, fast measuring frequency, peak detection, calculation, counting direction switching, power On/Off, data output
• Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• IP42 for protection against objects greater than 1mm and water
• Supplied in a fitted plastic case

For more information, please see Data Sheet
