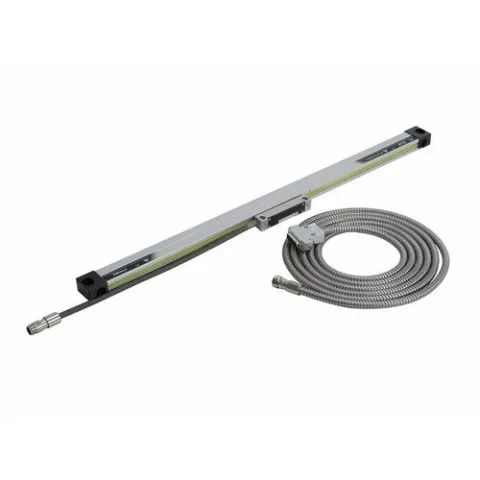

Mitutoyo 539-206-30 AT113-350 Linear Scale, 350 mm Effective Range

The AT113 series slim spar type linear scale is designed for limited-space installation.

The LED light source and phototransistor receptor on the AT113 linear scale provides accurate results in a variety of applications. Its slim design allows for installation in smaller spaces, and the enhanced vibration resistance offers added durability for shop floor use.

Features:

• Slim spar type with unit sectional dimensions of 22x35 mm
• Dimensionally compatible with AT116 linear scale units
• Innovative rubber lips keep contaminants out to eliminate dust
• An armored signal cable is used to connect the scale unit to the DRO counter for safe operation in harsh shop environments
• The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
• Connectable to the KA counter or PSU-200
• IP53 rated for protection from dust and spraying water

For more information, please see Data Sheet
