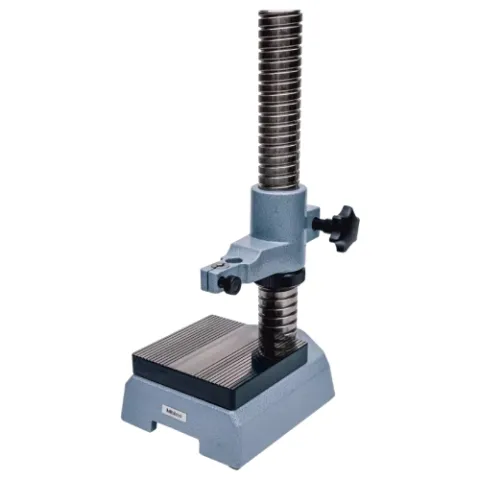

Mitutoyo 215-505-10 Series 215 Comparator Stand, 150 x 150 mm

Comparator Stand have a stable, cast-iron base which enables precise measurement. The partially serrated anvil prevents flat workpieces from wringing to it and the 2.3 μm flatness (or better) promotes accurate measurement.

Features:

• Serrated anvils 150 x 150 mm are supplied with 215-505-10
• Perpendicularity of the mounting hole to the anvil: less than 0.4 mm / 100 mm
• The 215-505-10 model has a threaded column which enables easy and precise coarse adjustment.
