Mitutoyo 215-405-10 Series 215 Comparator Stand, 110 x 110 mm
Click to zoom
  • Brand:Mitutoyo
  • Part #:215-405-10
  • Model #:Series 215
Factory Warranty
Warranty
Condition
Condition: new
  • Regular Price: $1,120.00
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

Comparator Stand have a stable, cast-iron base which enables precise measurement. The partially serrated anvil prevents flat workpieces from wringing to it and the 2.3 μm flatness (or better) promotes accurate measurement.

Features:

  • Serrated anvils 110 x 110 mm are supplied with 215-405-10
  • Perpendicularity of the mounting hole to the anvil: less than 0.4 mm / 100 mm

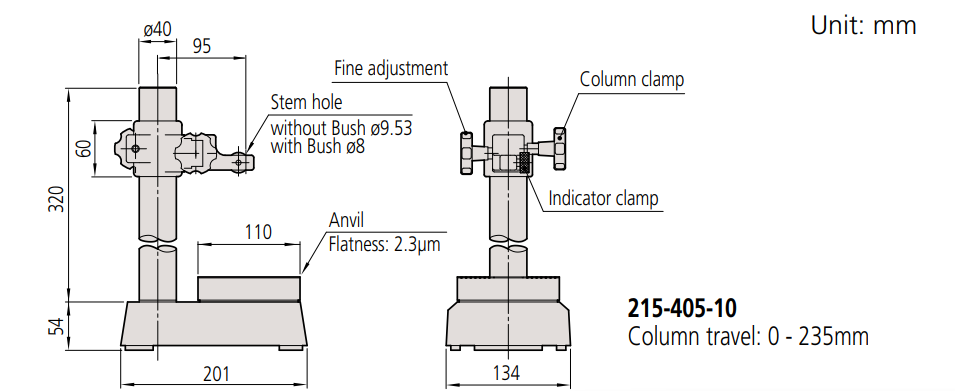

Dimension diagram
