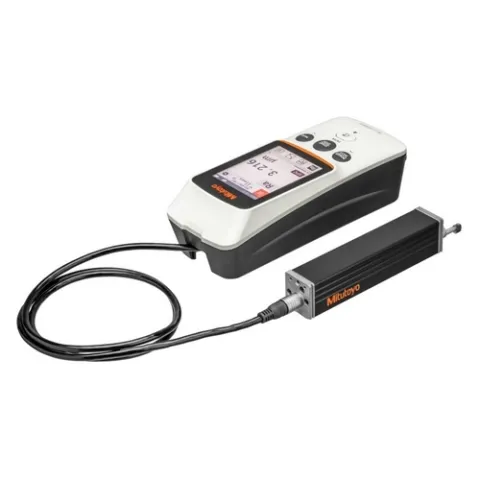

Mitutoyo 178-742-13-MCS Surftest Series SJ-220 Portable Surface Roughness Tester, 4 mN, Standard Drive Unit Type Manual Column Stand Package

A portable surface roughness tester designed like a hand tool for easy on-site use

The SJ-200 series of portable surface roughness measuring instruments that has contributed to industrial development and technological progress through precision measurements, has evolved further still.

While maintaining excellent portability and ease of use on-site, it also provides touch screen functionality for intuitive operability. Equipped with a built-in battery, it can perform measurements in environments where power is not available and can be used approximately 1000 times on a full charge.

Cableless and paperless work is made possible by using the U-WAVE-TIB, a Mitutoyo wireless data transmitter. This is a user-friendly device that provides compatibility and versatility to meet diverse manufacturing needs.

Features:

• User-friendly - Simple and easy for anyone to use. Convenient portability and one-touch measurement functionality have been updated for comfortable operability.
• Intuitive operation through touch screen - The device is equipped with a touch screen and a new user interface. You can perform operations like changing the display screen and adjusting the settings with your fingertip. In addition to touch operations, the SJ-220 also supports flick and swipe operations, making it easy for anyone to perform measuring work. You can also disable the touch screen operation by holding down the PAGE key.
• Large display is easy to see and use - The screen size has been expanded to 2.8 inches, achieving high visibility while maintaining a compact device size for use with one hand. The backlight makes the screen clear and easy to see even in dimly lit locations. You can also change the screen display orientation from vertical to horizontal.
• Includes buttons in addition to the touch screen for further accessibility - Even if you are wearing gloves and unable to use the touch screen, you can still operate the SJ-220 using the physical buttons. With the addition of the HOME key, you can jump to the Home screen with one touch, display the daily menu, and call up calibration measurements and measurement conditions.
• Drive unit selection - Detectors and drive units for conventional devices can be used. Detectors can be easily replaced.
• Battery powered to enable measurement anywhere - Equipped with a built-in battery, the SJ-220 can perform measurements even in environments where power is not available. On a full charge, it can be used to perform measurements approximately 1000 times.
• Compatible with new standard ISO 21920 - In addition to conventional roughness standards, the SJ-220 supports the new surface texture standard ISO 21920.
• Wireless connectivity now available for increased measurement efficiency - Optional U-WAVE-TIB transmitter allows for wireless displaying of measurement results, setting measurement conditions, and bidirectional communication. By attaching the optional wireless communication unit, it is possible to have wireless communication via Bluetooth® with a device (PC or smartphone) on which the dedicated app is installed. In addition to receiving measurement results, the terminal side can also send measurement condition settings and measurement start information, allowing for cableless measurement work.
• USB communication for sending and receiving measurement data
• Compatible with Digimatic interface - SPC output of measurement results is possible by connecting to an optional Digimatic Mini Processor using the Digimatic Connection Cable. The SJ-220 also has an automatic Digimatic output function.
• Dedicated "SJ-APP" for increased efficiency of measurement work - The dedicated app that enables communication with the SJ-220 is equipped with various functions to increase work efficiency. It is also possible to manage data, create inspection reports, and export to CSV and PDF files on the terminal.
• Added convenience by linking to PC with highly functional free software, "SJ-Communication-Tool" - Mitutoyo provides free software that allows you to import various data (measurement conditions, parameter settings, calculation results, measurement data) from the SJ-220 to create and edit inspection reports on your PC. This software can significantly reduce the time it takes for you to create reports.

This package includes:

• 178-742-13-MCS SJ-220 4mN (STANDARD DRIVE UNIT) INCH/MM
• 178-069 Column Stand for SJ-210/310/410
• 12AAA221 Magnetic Stand Adaptor (8mm DIA)
• STF-220 eLearning Course

For more information, please see Brochure
