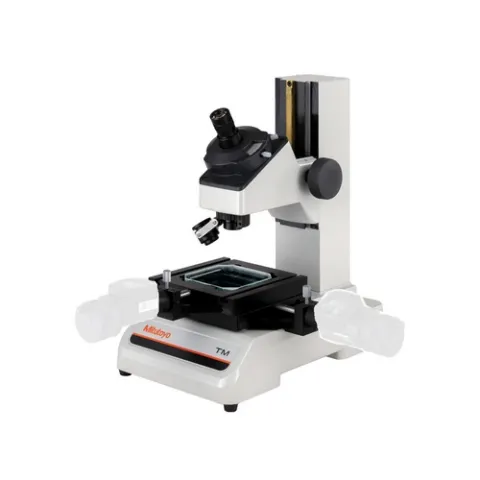

Mitutoyo 176-818-11A TM-505B Toolmaker's Microscope with Power Cord without Mic Heads

The Toolmaker's Microscope Series 176 provides a bright, clear field of view through LED illumination, delivering superior performance within the small-model class. Quick and easy measurements can be conducted using digital micrometer heads, which can be mounted directly onto the microscope stage.

The Mitutoyo TM Series is a microscope well suited for measuring dimensions and angles of machined metals. This series of microscopes has a newly designed LED illuminator with stepless intensity control for enhanced observation. The compact body makes it ideal for use on shop floors with limited space.

Features:

• Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticle with the workpiece image
• Illumination intensity can be adjusted
• Vernier scale mounted outside the eyepiece enables simple angle measurement
• Includes standard accessories which create an overall magnification of 30X
• Magnifications can be changed from 20 - 200X by using optional objectives and/or eyepieces
• Digimatic micrometer heads can output data to QM Data 2D processing module for measurements such as radii, diameters and point-to-point measurements

For more information, please see Brochure
