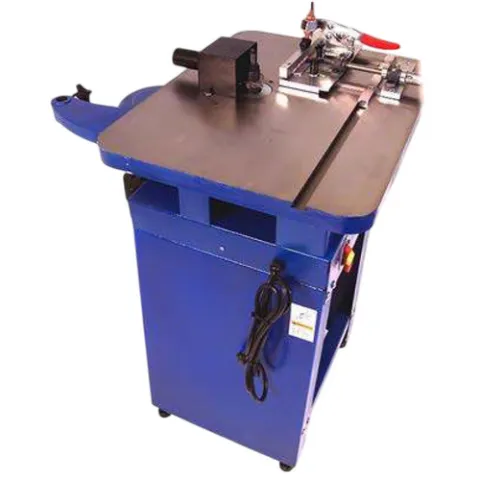

Martindale WGBV53B Model D Wedge Beveler (Complete with Hold Down Fixture) 230V

Model D Wedge Beveler accurately cuts and bevels wedges of any size and of special shapes, quickly saving its cost by preventing delays. For beveling, a fixture is provided that acts as both hold-down and guide. It clamps the wedge (up to 10" long) tightly in position throughout its length. The entire fixture then slides past the cutter. A dust collector hood is provided.

Beveling Cutters are used singly or in pairs. Each cutter is ground to 30°, 45°, or 60° to provide included angles of 60°, 90°, or 120°. The cutters are carbide-tipped and will bevel any of the laminated plastics being used in wedges today, as well as wood and other mild wedge materials. Adjustments are simple. Any of the bevels shown below can be made with the 90° cutters. Similar bevels can be made with the 60° and 120°, as well as many variations when cutters of different angles are used together.

For sawing wood wedge material to width, a special 3" circular saw is used. Thickness of cut is determined by vertical adjustment of the saw spindle.
