Overview

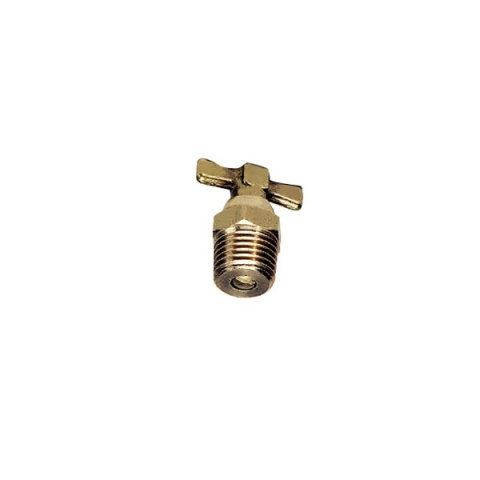

Brass Needle Valve, NPT 1/4 Male, Lever-Operated, 5mm Orifice
The brass needle valve designed for precise flow control in pneumatic, water, and inert gas systems. It features a lever-operated handle and a needle drain valve male shape. With a connection thread size of NPT 1/4 and an orifice size of 5 mm, it supports a maximum operating pressure of 120 bar (1740 psi). The valve operates effectively within a temperature range of -20°C to +100°C, with a maximum flow rate of 22.98 NL/min at 6 bar.
