Kennametal 7064674 Indexable Drill Insert, Carbide, KCMS35, AlTiN Finish, 5.25 mm Inscribed Circle, 2.40 mm Thick

  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Kennametal 7064674 Indexable Drill Insert, Carbide, KCMS35, AlTiN Finish, 5.25 mm Inscribed Circle, 2.40 mm Thick
Click to zoom
Factory Warranty
Warranty
Condition
Condition: new
  • Regular Price: $32.58
    • $31.93
      🔥 You save: 2.0%
      and
      Free Shipping*
      Buy in Packs: $319.30 / Pack of 10 pcs
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

Features:

  • Indexable Drill Insert: DFPR050204MSO KCMS35, Carbide
  • KCMS35, AlTiN Finish, 5.25 mm Inscribed Circle, 2.40 mm Thick, 0.40 mm Corner Radius, 11 deg Proprietary
  • Composition: Monolayer PVD AlTiN coated medium-grain carbide.
  • Four true cutting edges for lowest cost per part.
  • Outboard Insert with wiper-facets for superiour surface finish.

Application:

  • Applicable for stainless steel and high-temperature resistant materials. The coating offers high hardness and excellent wear resistance as well as enhanced high-temperature properties. In combination with its tough substrate, this grade offers superior chipping resistance and is best suited for metastable machining conditions.
  • Drilling
  • Drilling: Inclined Entry
  • Drilling: Inclined Exit
  • Drilling: X-Offset
  • Drilling: Stacked Plates
  • Drilling: Convex
  • Drilling: Blind
  • Chain Drilling
  • Drilling: Cross-Hole Drilling
  • Drilling: Half-Cylindrical Drilling
  • Drilling: Corner Drilling 45°

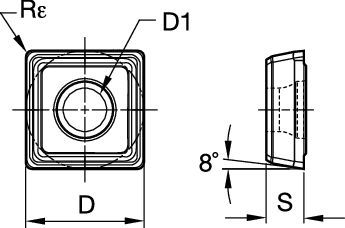

Size Scheme
