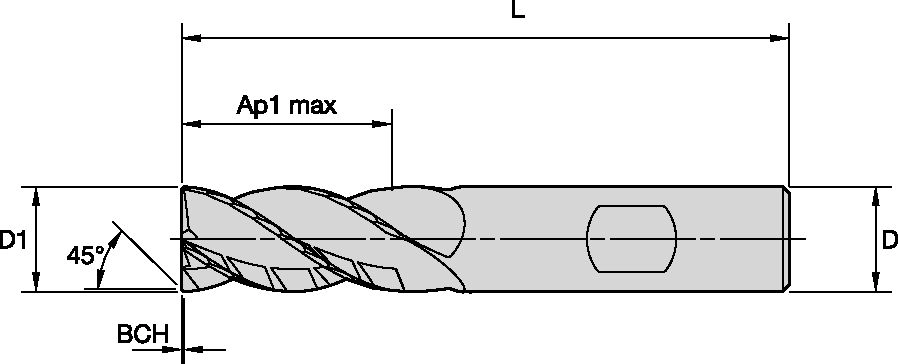

Kennametal 6767956 Corner Chamfer End Mill, 3.50 mm Dia, 8.00 mm LOC, 4 Flute, 0.30 mm Chamfer Width, Solid Carbide

Features:

• Corner Chamfer End Mill: 3.50 mm Dia, 8.00 mm LOC, 4 Flute, 0.30 mm Chamfer Width, Solid Carbide
• 54.00 mm OAL, 6.00 mm Shank Dia, 36 & 39 deg Helix, AlTiN Finish, Series H1TE, Centercutting
• Coated carbide grade with thick PVD coating and optimized chemistry and process for increased wear resistance.
• Outstanding protection in milling stainless steel to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.
• Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys
• HARVI I TE solid carbide end mills cover a variety of operations, including dynamic milling, and extreme ramping operations
• HARVI I TE solid carbide end mills stand for maximum metal removal, maximum productivity, maximum benefit
• HARVI I TE solid carbide end mills feature asymmetrical divided flutes, variable helix, twisted end face, faceted eccentric relief, and chip gashes within the flutes
• Center cutting for plunging and ramping operations

Application:

• Corner Style: Corner Chamfer
• Trochoidal Milling
• 100147465
• Helical Milling
• Plunge Milling
• Ramping: Blank
• Slotting: Square End
• Side Milling / Shoulder Milling: Eased Chamfer
• Tool Dimensions: Flute Configuration: 4
• Shank - Cylindrical Weldon
• Pocketing
• Side Milling / Shoulder Milling: Roughing
