Kennametal 6763989 Series KOR5 Corner Radius End Mill, 16.00 mm Dia, 48.00 mm LOC, 1.00 mm Radius, 5 Flute, Solid Carbide

Features:

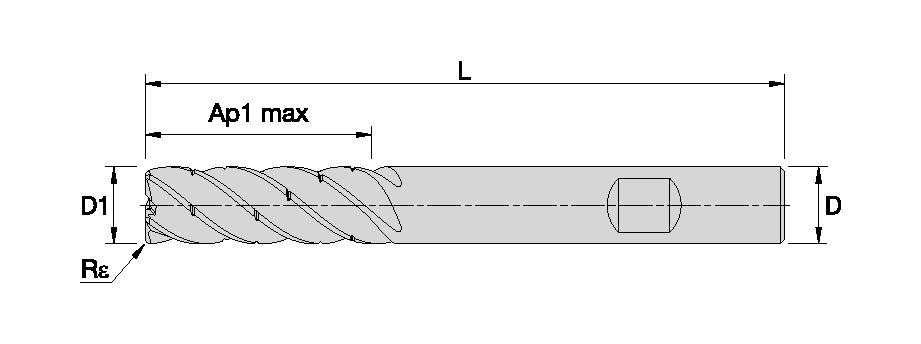

• Corner Radius End Mill: 16.00 mm Dia, 48.00 mm LOC, 1.00 mm Radius, 5 Flute, Solid Carbide
• 110.0000 mm OAL, 16.0000 mm Shank Dia, 40.00 deg Helix, AlTiN Finish, Single End, Series KOR5
• Coated fine-grain grade with PVD multilayer (AlTiN).
• KC643M is a very thin and hard PVD coating particularly suited for cutting steel, cast iron, stainless steel (wet), and titanium (wet).
• This grade can be used for materials with hardness up to 52 HRC.
• Designed for trochoidal milling with low radial engagement and full length of cut
• With chip deformers for ideal chip evacuation at high surface quality
• Proprietary flute form reduces vibrations and improves tool life
• Helix angle tailored to minimize vibration and optimize tool life
• Front end geometry designed for maximum tool life in helical and ramping operations

Application:

• Trochoidal Milling
• Ramping: 5°
• Side Milling / Shoulder Milling: Square End
• Tool Dimensions: Flute Configuration: 5
• Shank - Cylindrical Weldon
• Helix Angle: 40°
• Corner Style: Corner Radius
