Kennametal 6676277 Corner Radius End Mill, 16.00 mm Dia, 24.00 mm LOC, 0.50 mm Radius, 4 Flute, Solid Carbide

Features:

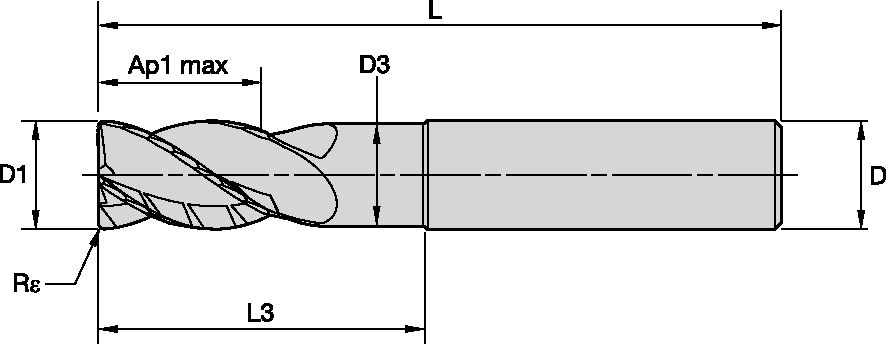

• Corner Radius End Mill: 16.00 mm Dia, 24.00 mm LOC, 0.50 mm Radius, 4 Flute, Solid Carbide
• 100.0000 mm OAL, 16.0000 mm Shank Dia, 36.00 deg Helix, AlTiN Finish, Single End, Series HARVI I TE, Centercutting
• Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys
• HARVI I TE solid carbide end mills cover a variety of operations, including dynamic milling, and extreme ramping operations
• HARVI I TE solid carbide end mills stand for maximum metal removal, maximum productivity, maximum benefit
• HARVI I TE solid carbide end mills feature asymmetrical divided flutes, variable helix, twisted end face, faceted eccentric relief, and chip gashes within the flutes
• Center cutting for plunging and ramping operations
• Coated carbide grade with thick PVD coating and optimized chemistry and process for increased wear resistance.
• Outstanding protection in milling stainless steel to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.

Application:

• Trochoidal Milling
• 100147465
• Helical Milling
• Plunge Milling
• Ramping: Blank
• Slotting: Square End
• Side Milling / Shoulder Milling: Eased Chamfer
• Tool Dimensions: Flute Configuration: 4
• Shank - Cylindrical Plain
• Corner Style: Corner Radius
• Pocketing
• Side Milling / Shoulder Milling: Roughing
