Kennametal 4046385 Corner Radius End Mill, 10.00 mm Dia, 22.00 mm LOC, 0.51 mm Radius, 5 Flute, Solid Carbide

Features:

• Coated carbide grade with thick PVD coating and optimized chemistry and process for increased wear resistance. Outstanding protection in milling stainless steel to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.
• Versatile solid carbide end mill for steels, stainless steel, cast iron, and high-temperature alloys.
• HARVI II solid carbide end mills cover a variety of operations, including dynamic milling.
• HARVI II solid carbide end mills feature unequal flute spacing for chatter-free machining at highest feed rates.
• Slotting up to 1 x D.

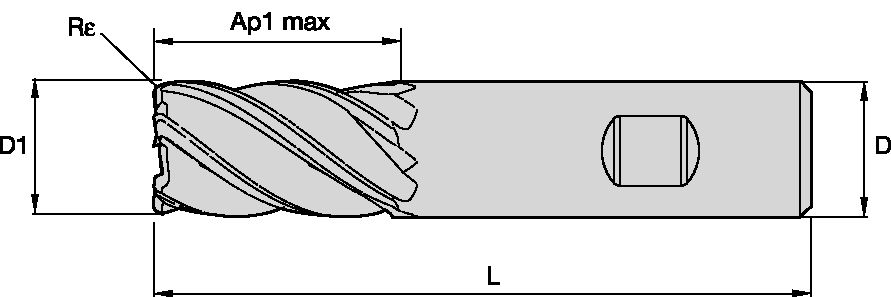

• Corner Radius End Mill: 10.00 mm Dia, 22.00 mm LOC, 0.51 mm Radius, 5 Flute, Solid Carbide
• 72.0000 mm OAL, 10.0000 mm Shank Dia, 38.00 deg Helix, AlTiN Finish, Single End, Series UCDE

Application:

• Trochoidal Milling
• Ramping: 3°
• Slotting: Square End
• Side Milling / Shoulder Milling: Square End
• Tool Dimensions: Flute Configuration: 5
• Helix Angle: 38°
• Corner Style: Corner Radius
