Kennametal 3899142 Series UCDE Corner Radius End Mill, 9/16" Dia, 1-1/4" LOC, 0.0150" Radius, 5 Flute, Solid Carbide

Features:

• Versatile solid carbide end mill for steels, stainless steel, cast iron, and hard materials.
• HARVI II solid carbide end mill covers a variety of operations, including dynamic milling.
• HARVI II solid carbide end mill features unequal flute spacing for chatter-free machining at highest feed rates.
• Slotting up to 1xD.
• Coated fine-grain grade with PVD multilayer (AlTiN). KC643M is a very thin and hard PVD coating particularly suited for cutting steel, cast iron, stainless steel (wet), and titanium (wet). This grade can be used for materials with hardness up to 52 HRC.
• Corner Radius End Mill: 9/16" Dia, 1-1/4" LOC, 0.0150" Radius, 5 Flute, Solid Carbide

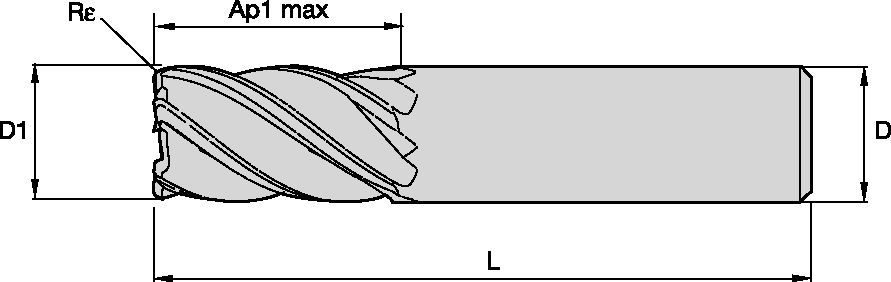

• 3-1/2" OAL, 5/8" Shank Dia, 38 deg Helix, AlTiN Finish, Single End, Series UCDE

Application:

• Trochoidal Milling
• Ramping: 3°
• Slotting: Square End
• Side Milling / Shoulder Milling: Square End
• Tool Dimensions: Flute Configuration: 5
• Helix Angle: 38°
• Corner Style: Corner Radius
• Corner Style: Square End
